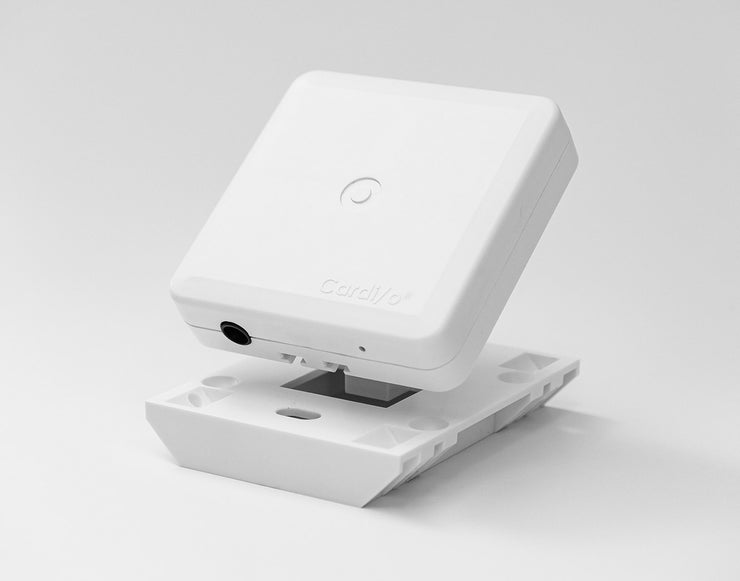

Cardi/o® ATX-2400 Monitor

$0.00

Cardi/o® ATX-2400 Monitor

Touchless Heart Rate
Touchless Respiratory Rate
Touchless Stress (Heart Rate Variability / HRV)
Secure, HIPAA-compliant data transfer
Radar sensor, no cameras used
Dual wall/corner mount
110V AC plug
WiFi-Cloud Connected
Single-user monitor
iOS and Android Apps

Includes:

ONE-YEAR LIMITED MANUFACTURER’S WARRANTY

Advanced TeleSensors, Inc. hereby warrants solely to End User that its hardware product will not contain any defects in material or workmanship that cause such product to fail to function in any material respect when properly operated (the “Product Warranty”) for a period of twelve (12) months from the date of purchase (the “Warranty Period”) by End User. See the full warranty information to know your consumer rights and the additional protections provided by this warranty.

See Tech Specs

Free App: Real-Time Stats Stats Anytime Anywhere

Download the Cardi/o® App at Apple Store or Google Play.
Connect up to 3 sensors to your household's Cardi/o® Cloud Plan for household coverage under one Plan.
Share wellness goals by adding users to your account.

Watch the app in action

View Real-time Stats in a single glance

View Heart Rate + 30 days history

View Respiratory Rate + 30 days history

View Stress “Score” (HRV) + 30 days history

View Motion + 30 days history

“Alexa, Open My Cardi/o®”

Pair your Cardi/o® sensor with an Amazon Echo Show for larger viewing display and voice commands. Add more convenience with the "My Cardi/o®" skill found on any Alexa-smart device by Amazon. Create your own Cardi/o® "zone" and step into easy touchless well checks in your own home. (Amazon devices sold separately).

"Alexa, what is Dad's stress level?"

Easy 1-2-3 Installation

Your prepaid Cardi/o® Cloud Plan is activated once your sensor is connected to the Cardi/o® Cloud.
Don't have a Cardi/o Cloud Plan yet? Click ACTIVATE SERVICE at the top of this page to buy/add a service plan for your sensor.

STEP 1

Download the Cardi/o® App

STEP 2

Connect your Cardi/o® sensor to the Cardi/o® Cloud

STEP 3

Mount in the room you choose to enjoy your Cardi/o® zone

HOUSEHOLD COVERAGE

Add up to 3 sensors on a single plan for more coverage areas

Measurements

Heart Rate

30 - 180 BPM

Respiratory Rate

9 - 60 bpm

Stress (HRV) Score

0 - 10 Score

Motion Intensity

0-10

Dynamic Sensing Range

Max sensing range varies between 6-10 feet (2-3 meters); varies with different individuals.
Maintain 2-inch (5 cm) minimum separation from Cardi/o® sensor.

Sensing Field of View

30 degrees

Hardware

Enclosure

Special ABS plastic
3” H x 3” W x .75” D

Technology

Cardiac signal processing
RF Radar 24.0 – 24.497 GHz ISM

Power

AC Adapter Input: 110V – 240V – 50/60 Hz 0.4A max
Output: 5.9V 2.0A max
6 ft straight UL certified cable

Weight

5 oz (sensor + mount + cable)

Connection

WIFI WLAN STANDARD

IEEE 802.11b/g/n, Wi-Fi compliant

SERIAL WIFI (ES-WIFITM)

ISM43362-M3G-L44

MODULATION

802.11 g/n : OFDM /64-QAM,16-QAM, QPSK, BPSK
802.11b : CCK, DQPSK, DBPSK

MAX POWER OUTPUT

802.11n /72Mbps: 18* dBm ± 1.5 dB

SECURITY

Wi-Fi authentication WEP-128, WPA-PSK (TKIP), WPA2-PSK

MOBILE APP

Controlled by iOS or Android companion App

Operating Conditions

INSTALLATION

Single Mount compatible for flat surfaces and corners

STORAGE

(-15) – 85° C

HUMIDITY

10 – 95% RH (noncondensing)

ALTITUDE

<3000 m

BAROMETRIC PRESSURE

70 kPa to 102 kPa

AMBIENT TEMPERATURE

0 – 70°C
